Membrane Filter Press

Membrane filter press used in Chemical industry

This is a case from Russia customer, need to process 50 tons deicing materials per day, solid content 1%.

As below is the testing we done.

Pharmacy debugging experiment report

1. Processing material:Salt brine

2. Material properties: PH value 5, slightly acidic

3. Material description: The material has a low solid content. If directly enter the sludge dewatering equipment for squeezing, the material must be flocculated and settled. After reaching a good flocculation state, it can be squeezed.

4. Experimental description:

first step, the material is tempered, and the PH value is adjusted to neutral or alkalescent, generally reaching a value of 8-9, and the effect is better. In this step, we added limestone water.

The left picture shows the flocculation effect after adjusting the PH value,

 the right picture shows the unadjusted flocculation effect

second step ： to flocculate and settle the material. We first added the anions in PAM (polyacrylamide). After thorough stirring, the sewage quickly formed a large amount of alum blossoms, which settled to the bottom, and clear water left.

The picture on the left is the effect of the agent after debugging, and the picture on the right is the raw material

Summary of the experiment: After pre-treatment of the material (adding lime), adjusting the PH value, and then adding PAM anions, the sewage can already be flocculated well to achieve solid-liquid separation, and it can be directly passed through the filter press

Finally,customer was very satisfied to our testing and bought a 40 m2 membrane filter press .

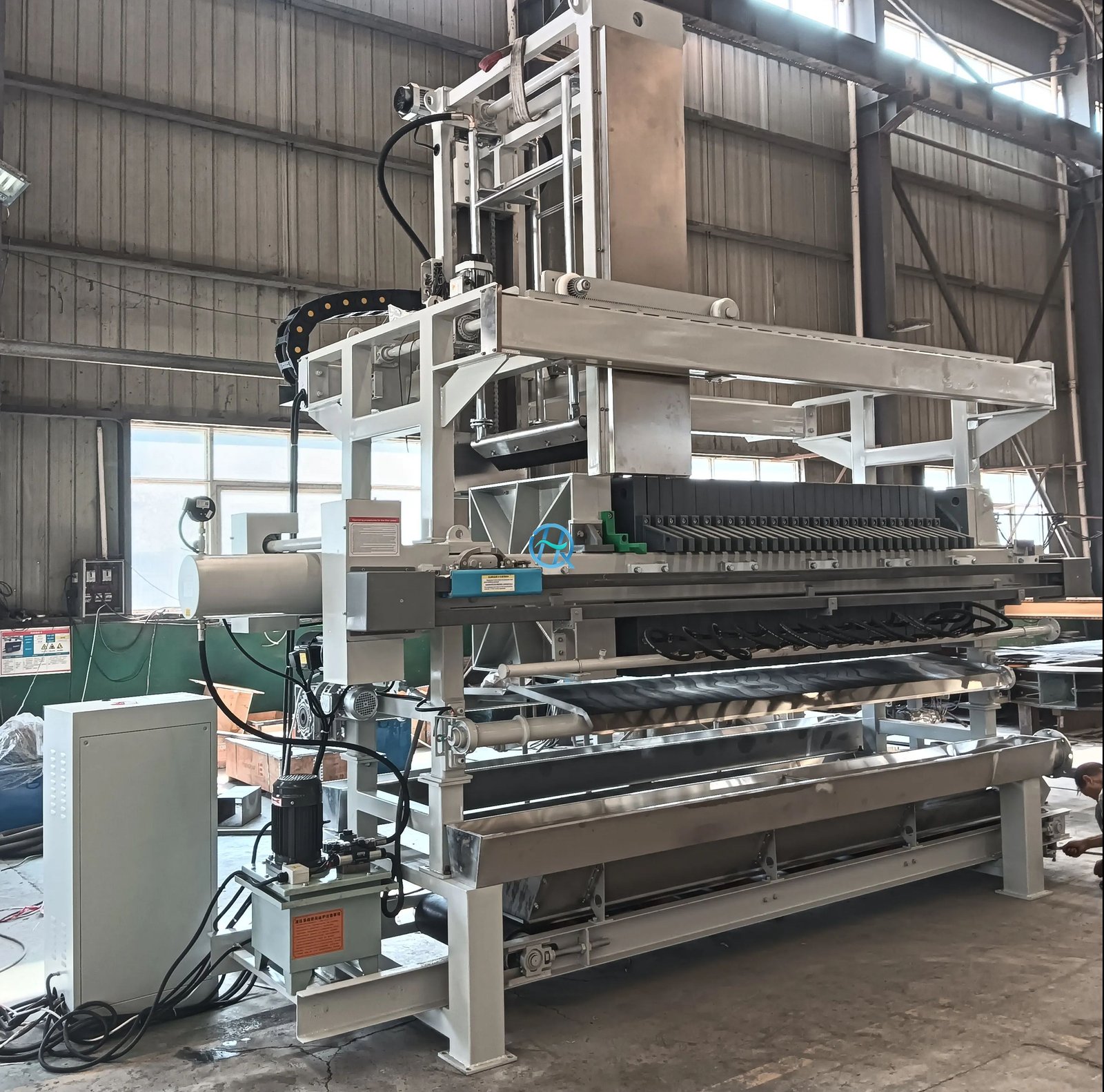

Fully automatic membrane filter press,with cloth washing device,belt conveyor,PLC Siemens S7-1200, Panel TP 900
