| Quantity: | |
|---|---|
Specification: | Series of 320, 450, 630, 800, 870, 1000, 1250, 1500, 2000 type and other unconventionality filter plate and filter press. |
Filtration area can up to 2000m. | |
Filter plate material: | stainless steel, cast iron, rubber, FRPP, high-temperature resistance glass-fiber, pp30 elastomeric membrane plate. |
Mode of liquid discharge: | open delivery, closed delivery, washable, non-washable, feeding from thecorner, feeding from middle, feeding from top. |
Compacting method of filter plate: | manually screw compacting, electric mechanical compacting.hydrocylinder compacting. |
| We can design and manufacture the product with special specification based on the customerrequirements. | |
| ln case that the technical parameters have a change due to the model improvement, please take theactual size in the order as the standard. | |
Machine structure and principle
1.The filter press consists of machine frame, filter plate, compacting System(manual, mechanical, hydraulic) and electriccabinet.
2. Machine frame serves to support the compacting system and the filter plate, including engine base, pressure platethrust plate and girder,
3. Fiter plate is mounted on the girder between the pressure plate and thrust plate, filter cloth is sandwiched between the filter plates.
4. During working, the pressure plate is pushed by the compacting system to press the filter plate and filter cloth betweenthe pressure plate and thrust plate, and the chamber is formed between the pressed filter plate. The material pressed by feedpump enters each chamber from the feed inlet of thrust plate, the solid be trapped in the filter chamber and the filter cakebe formed, the liquid is discharged from the water outlet passed through the filter cake and filter cloth. if the filter cakeneeds to be washed, it can be washed by wash water from the washing hole on the tail plate. If the filter cake needs to beblown dry, compressed air can be inlet from washing hole.
5. The structure of the plate and frame flter press is same as that of the chamber filter press, except that the filter part iscomposed of one filter plate and one filter frame and one filter cloth, the frame space is the filter chamber,6. The flow form of filter press is divided into open delivery and closed delivery. Open delivery means that the filtrate isdischarged from the outlet of each filter plate directly, and closed delivery refers to the filtrate of each plate is merged anddischarged from the outlet path.

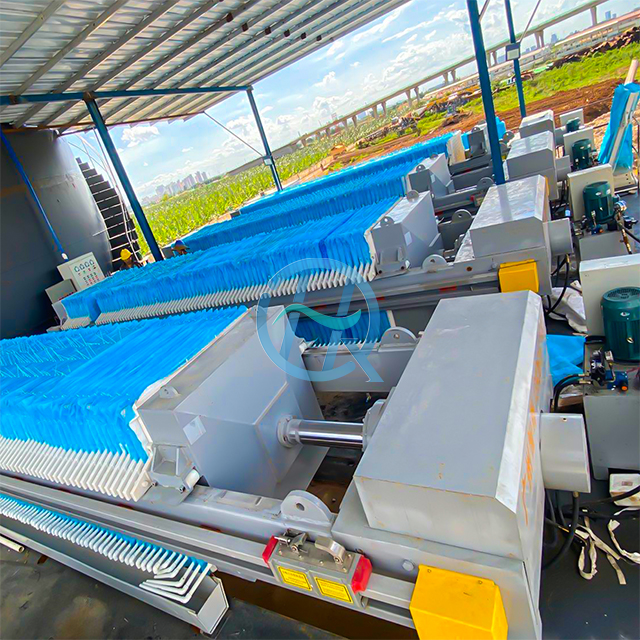

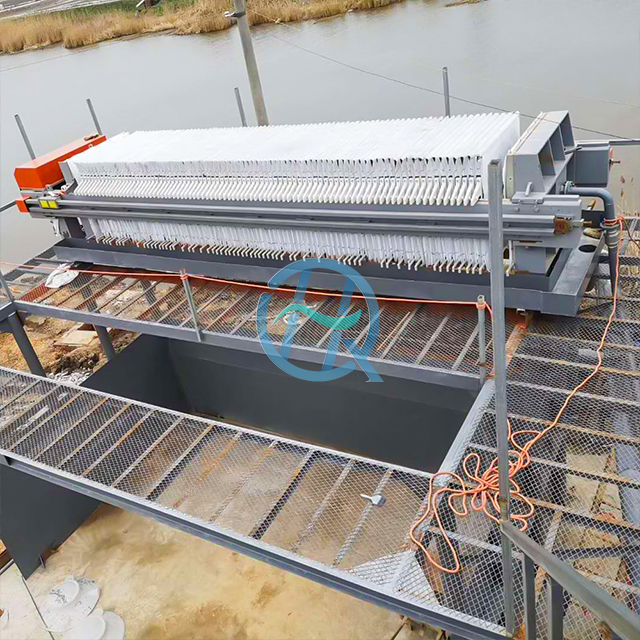

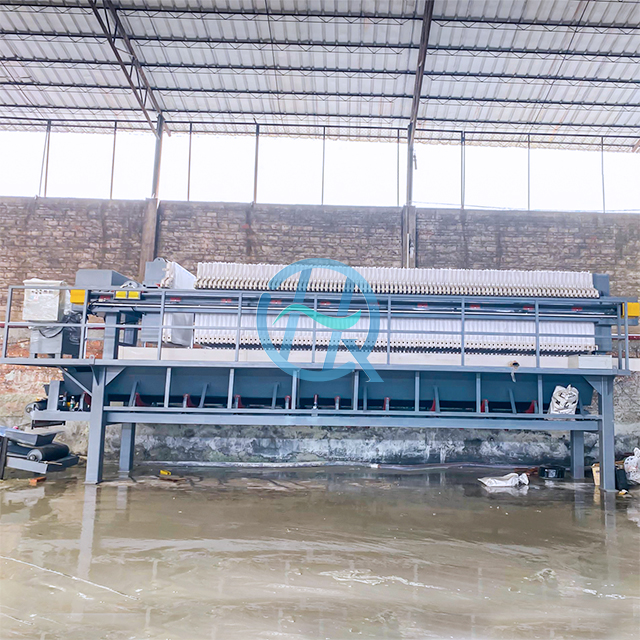

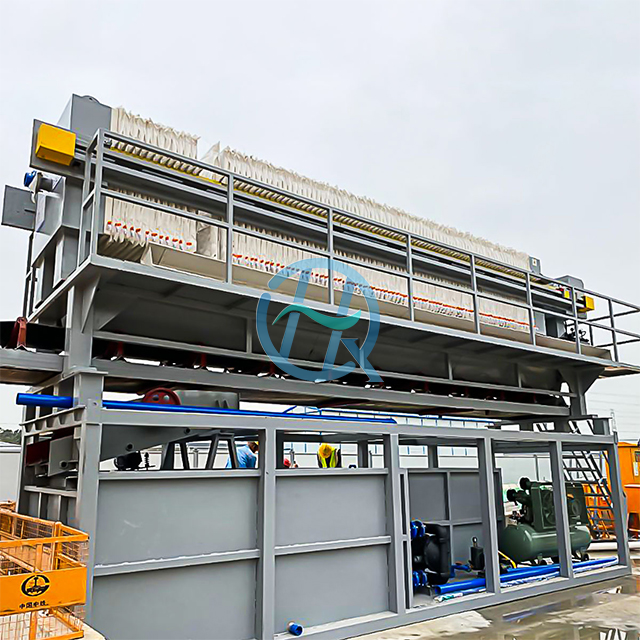

Automatic plate pulling chamber filter press
Performance and features
Automatic plate pulling chamber filter press is adopted PLC control system, automaticpressure maintaining, automatic pulling plate for discharge. Girder adopts rectangularbridge steel with good rigidity and resistance to lateral bending, has the characteristic ofeasy operation and reliable performance, and the remote control interface is left.
Specification: | Series of 320, 450, 630, 800, 870, 1000, 1250, 1500, 2000 type and other unconventionality filter plate and filter press. |
Filtration area can up to 2000m. | |
Filter plate material: | stainless steel, cast iron, rubber, FRPP, high-temperature resistance glass-fiber, pp30 elastomeric membrane plate. |
Mode of liquid discharge: | open delivery, closed delivery, washable, non-washable, feeding from thecorner, feeding from middle, feeding from top. |
Compacting method of filter plate: | manually screw compacting, electric mechanical compacting.hydrocylinder compacting. |
| We can design and manufacture the product with special specification based on the customerrequirements. | |
| ln case that the technical parameters have a change due to the model improvement, please take theactual size in the order as the standard. | |
Machine structure and principle
1.The filter press consists of machine frame, filter plate, compacting System(manual, mechanical, hydraulic) and electriccabinet.
2. Machine frame serves to support the compacting system and the filter plate, including engine base, pressure platethrust plate and girder,
3. Fiter plate is mounted on the girder between the pressure plate and thrust plate, filter cloth is sandwiched between the filter plates.
4. During working, the pressure plate is pushed by the compacting system to press the filter plate and filter cloth betweenthe pressure plate and thrust plate, and the chamber is formed between the pressed filter plate. The material pressed by feedpump enters each chamber from the feed inlet of thrust plate, the solid be trapped in the filter chamber and the filter cakebe formed, the liquid is discharged from the water outlet passed through the filter cake and filter cloth. if the filter cakeneeds to be washed, it can be washed by wash water from the washing hole on the tail plate. If the filter cake needs to beblown dry, compressed air can be inlet from washing hole.
5. The structure of the plate and frame flter press is same as that of the chamber filter press, except that the filter part iscomposed of one filter plate and one filter frame and one filter cloth, the frame space is the filter chamber,6. The flow form of filter press is divided into open delivery and closed delivery. Open delivery means that the filtrate isdischarged from the outlet of each filter plate directly, and closed delivery refers to the filtrate of each plate is merged anddischarged from the outlet path.
Automatic plate pulling chamber filter press
Performance and features
Automatic plate pulling chamber filter press is adopted PLC control system, automaticpressure maintaining, automatic pulling plate for discharge. Girder adopts rectangularbridge steel with good rigidity and resistance to lateral bending, has the characteristic ofeasy operation and reliable performance, and the remote control interface is left.
