Machine structure and principle
1.The filter press consists of machine frame, filter plate, compacting System(manual, mechanical, hydraulic) and electriccabinet.
2. Machine frame serves to support the compacting system and the filter plate, including engine base, pressure platethrust plate and girder.
3. Fiter plate is mounted on the girder between the pressure plate and thrust plate, filter cloth is sandwiched between the filter plates.
4. During working, the pressure plate is pushed by the compacting system to press the filter plate and filter cloth betweenthe pressure plate and thrust plate, and the chamber is formed between the pressed filter plate. The material pressed by feedpump enters each chamber from the feed inlet of thrust plate, the solid be trapped in the filter chamber and the filter cakebe formed, the liquid is discharged from the water outlet passed through the filter cake and filter cloth. if the filter cakeneeds to be washed, it can be washed by wash water from the washing hole on the tail plate. If the filter cake needs to beblown dry, compressed air can be inlet from washing hole.
5. The structure of the plate and frame flter press is same as that of the chamber filter press, except that the filter part iscomposed of one filter plate and one filter frame and one filter cloth, the frame space is the filter chamber,6. The flow form of filter press is divided into open delivery and closed delivery. Open delivery means that the filtrate isdischarged from the outlet of each filter plate directly, and closed delivery refers to the filtrate of each plate is merged anddischarged from the outlet path.
Performance and features

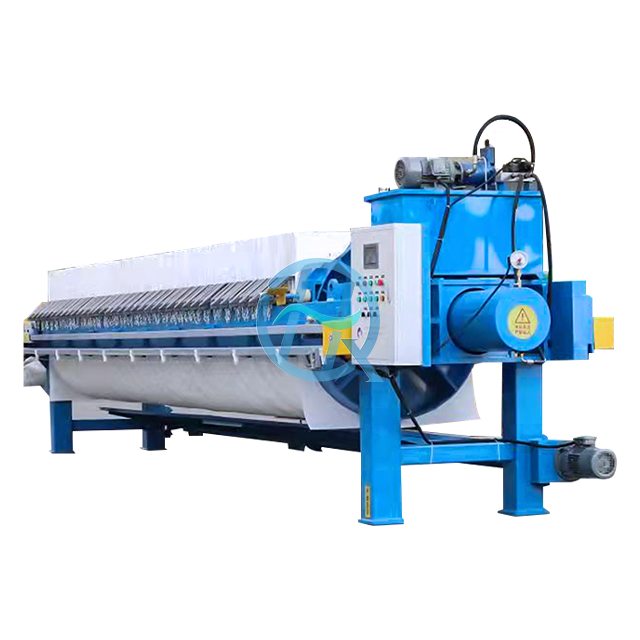

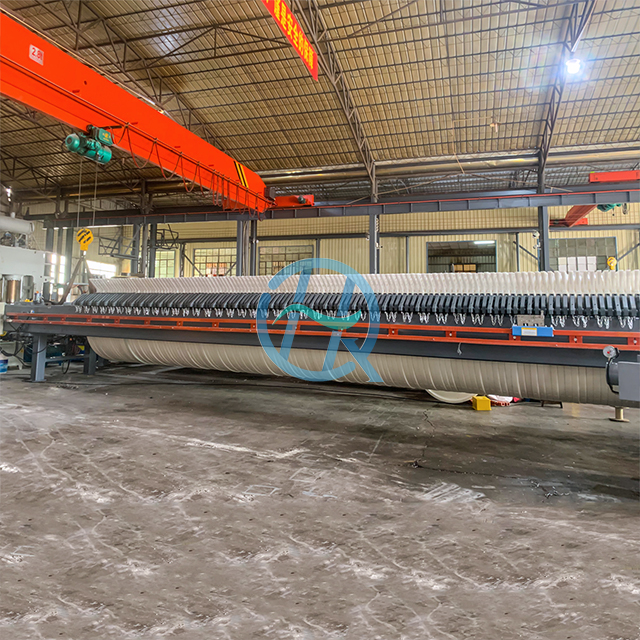

Round high pressure fiter press is made of polymer material and has thecharacteristics of light weight, high anti-resistance and good sealing performance. lt iswidely used in kaolin, ceramic clay, marble, cutting fluid, grinding fluid, and it is suitablefor materials with high fineness and high viscosity and difficult to filter.
Machine structure and principle
1.The filter press consists of machine frame, filter plate, compacting System(manual, mechanical, hydraulic) and electriccabinet.
2. Machine frame serves to support the compacting system and the filter plate, including engine base, pressure platethrust plate and girder.
3. Fiter plate is mounted on the girder between the pressure plate and thrust plate, filter cloth is sandwiched between the filter plates.
4. During working, the pressure plate is pushed by the compacting system to press the filter plate and filter cloth betweenthe pressure plate and thrust plate, and the chamber is formed between the pressed filter plate. The material pressed by feedpump enters each chamber from the feed inlet of thrust plate, the solid be trapped in the filter chamber and the filter cakebe formed, the liquid is discharged from the water outlet passed through the filter cake and filter cloth. if the filter cakeneeds to be washed, it can be washed by wash water from the washing hole on the tail plate. If the filter cake needs to beblown dry, compressed air can be inlet from washing hole.
5. The structure of the plate and frame flter press is same as that of the chamber filter press, except that the filter part iscomposed of one filter plate and one filter frame and one filter cloth, the frame space is the filter chamber,6. The flow form of filter press is divided into open delivery and closed delivery. Open delivery means that the filtrate isdischarged from the outlet of each filter plate directly, and closed delivery refers to the filtrate of each plate is merged anddischarged from the outlet path.
Performance and features
Round high pressure fiter press is made of polymer material and has thecharacteristics of light weight, high anti-resistance and good sealing performance. lt iswidely used in kaolin, ceramic clay, marble, cutting fluid, grinding fluid, and it is suitablefor materials with high fineness and high viscosity and difficult to filter.
