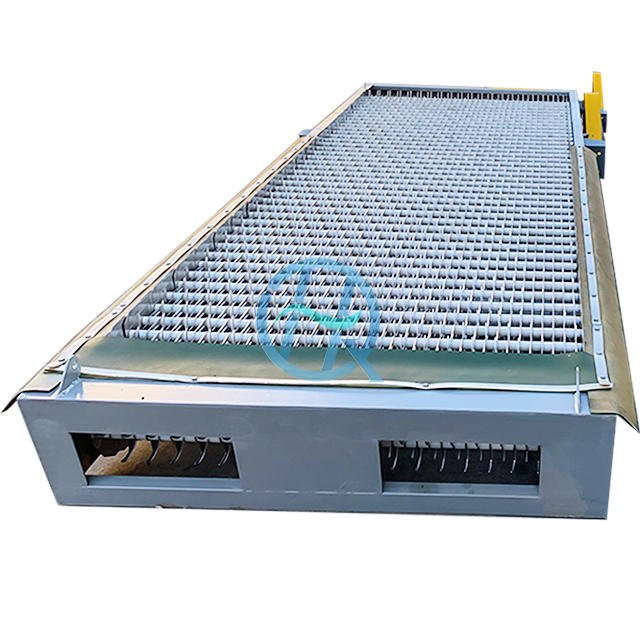

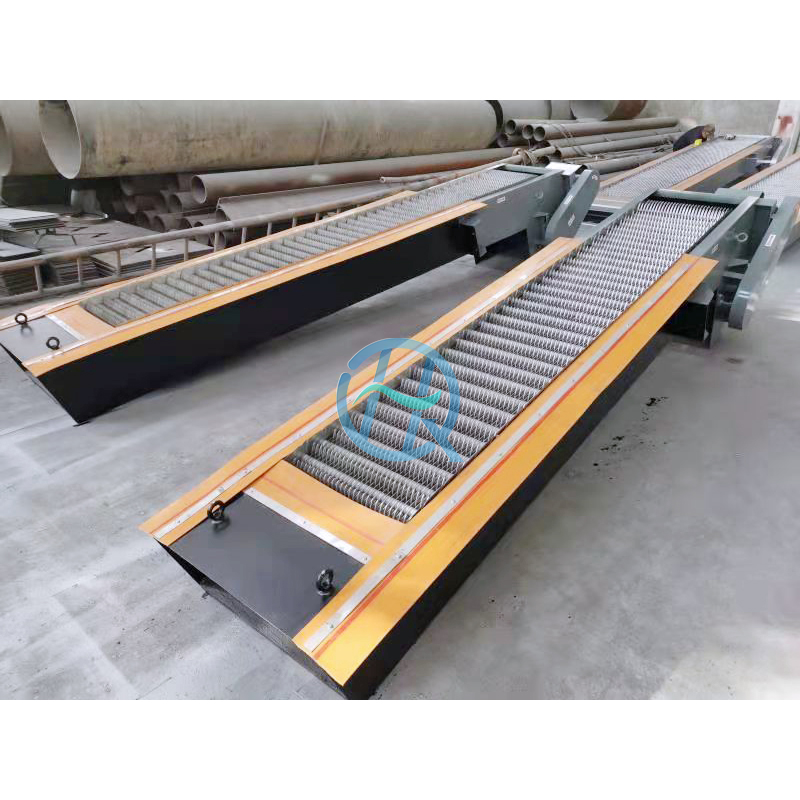

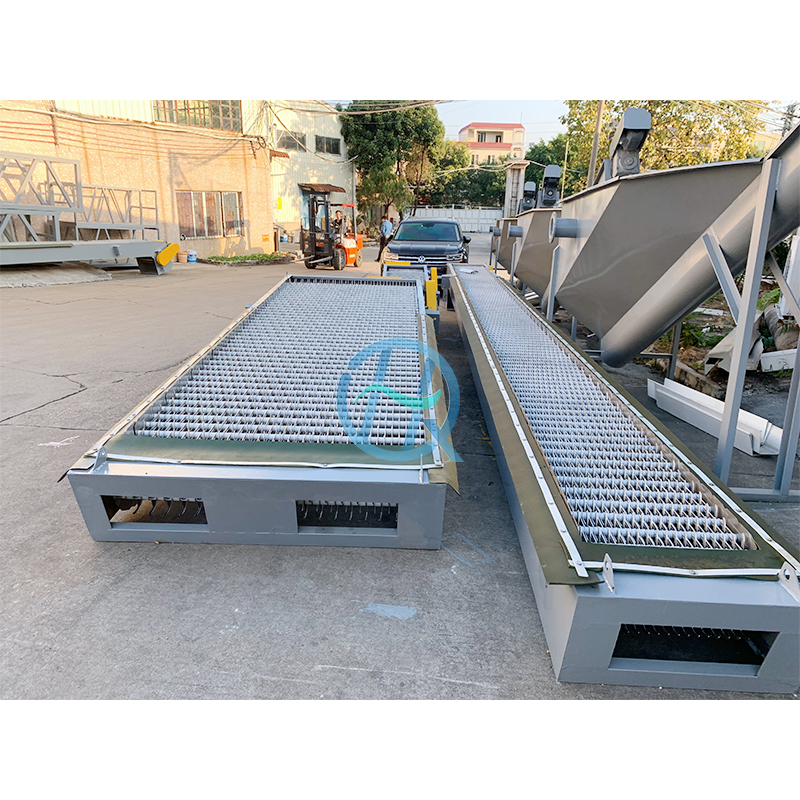

1.the rake teeth are made of stainless steel material, corrosion resistance and high temperature resistance.
2. the rake teeth are combined into grid surface, plus stainless steel guard plate, will not be blocked.
3. rake tooth pitch 100, 150 two specifications 150 pitch is suitable for large grid gap.
4. according to the need, preparation of a variety of grid gap. Grid gap is available from 1-50mm.
5. machine width from 300-3000mm for user selection.
6. the whole machine integrated installation, high running precision.
Note: The equipment is installed by lifting the whole machine. There is no need to set other supports on both sides of the collecting well. Only two 620×150×16mm steel plates are embedded on the floor, and the supporting steel plates on both sides of the frame can be welded into one during installation.

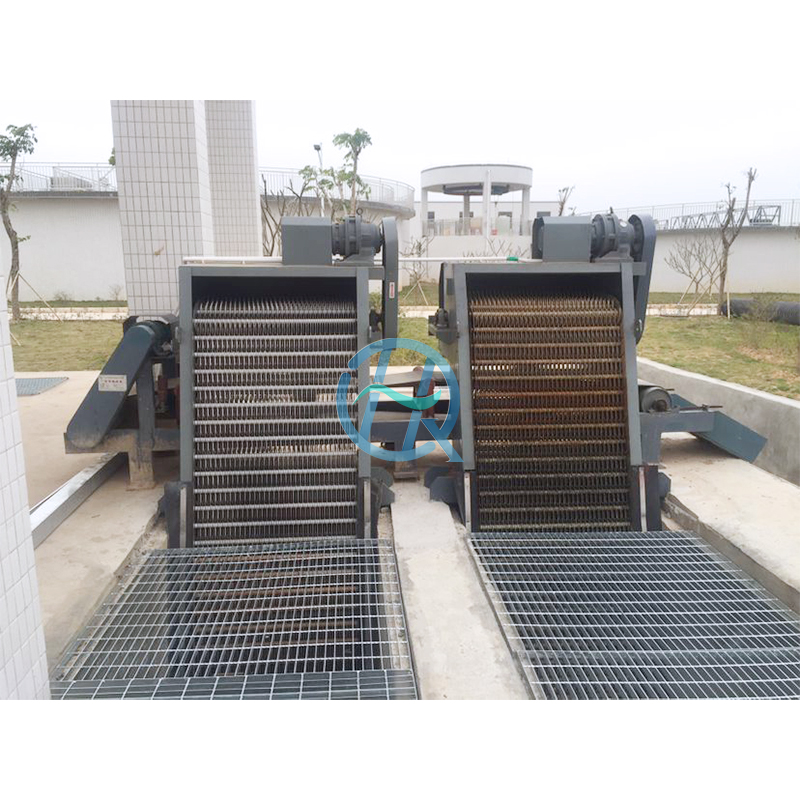

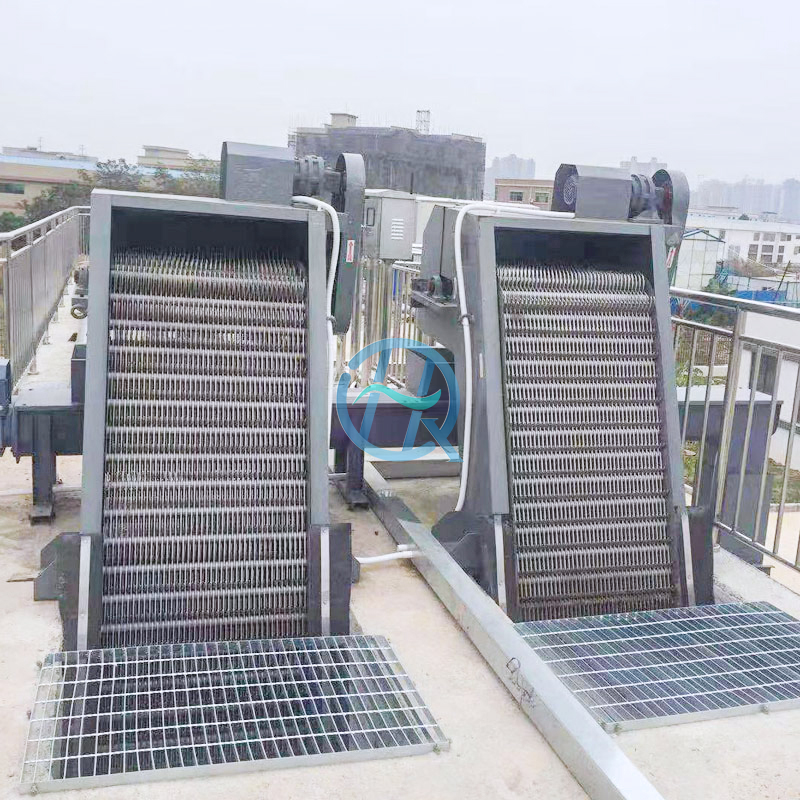

The internal flow screen grlle cleaning machine is used to intercept and exclude smaller suspended and particulate impurities inthe water supply and drainage sysiem. and luriher remove the dirt in the water alter rough arid reatment, The utlitvy mode hasthe advantages of compact structure, little occupation, convenient instalation and easy operation, Considering themaintenance, maintenance and extended service life of the equipment, there is no transmission part under the water, so as toavoidunnecessary mechanicaltrouble.
| Model | XGS3 | XGS4 | XGS5 | XGS6 | XGS7 | XGS8 | XGS9 | XGS10 | XGS11 | XGS12 | XGS13 | XGS15 |
| Mounting Angle | 60°-80° | |||||||||||
| power(kw) | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | |||||||
| Rotational speed(r/min) | 2 | |||||||||||
| Channel width(mm) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1600 |
| Channel depth(mm) | 1000-12000(User optional) | |||||||||||
| Equipment width(mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1500 |
| Medium humidity(℃) | ≤80 | |||||||||||
| Unloading height(mm) | 400-1000(User optional) | |||||||||||
