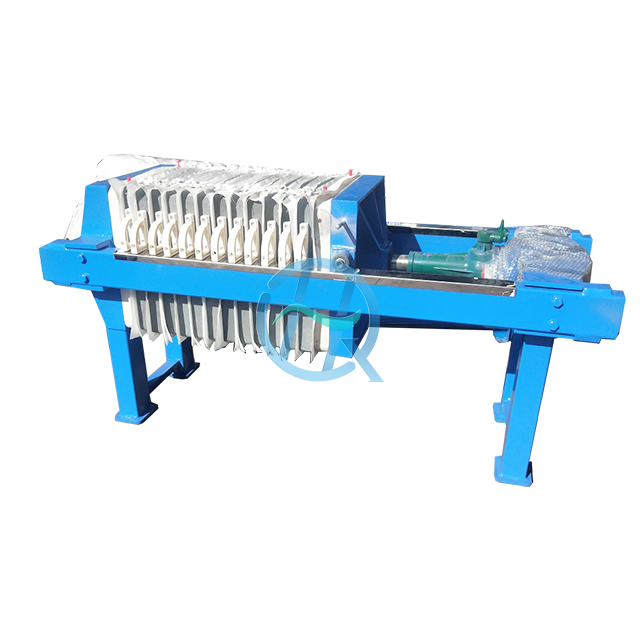

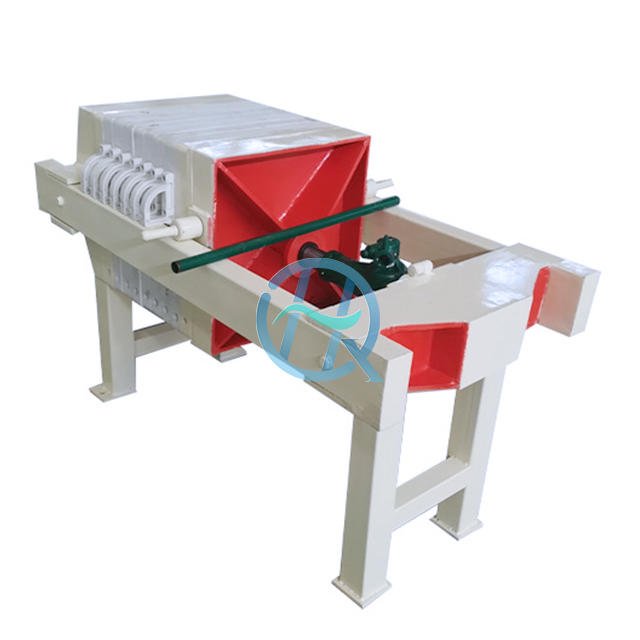

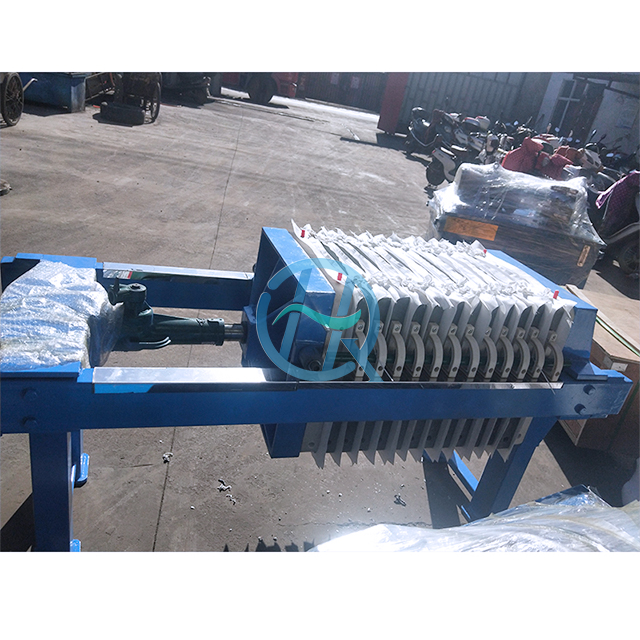

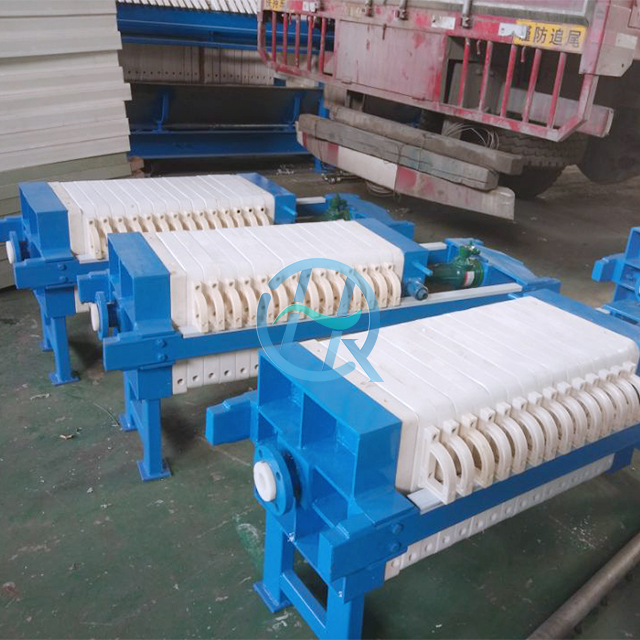

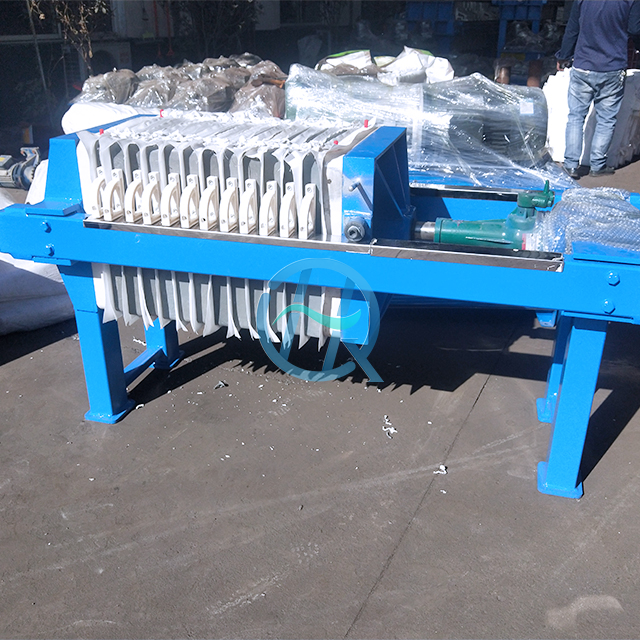

Jack pressure filter using screw dry jin top as a pressing device, with simple structure, convenient operation, no power supply, economic and practical characteristics, generally used for filtering area 1~40 square meters of the filter press.
Jack press filter separation effect is good, easy to use, widely used in petroleum, chemical, dye, metallurgy, pharmaceutical, food, paper and sewage treatment and other need for solid-liquid separation of the field, suitable for small filtration industry, the general use of low pressure, filtration pressure less than 0.4Mpa filtration field.
Jack filter press is mainly composed of three parts, namely: the frame part, the filter part, the pressing device. When the filter press works, it rotates the handwheel, and drives the screw to push the pressing plate through the small tooth and big gear, so as to press the filter plate and filter medium (press cloth) between the pressing plate and the pushing plate, so as to ensure that the filtered material (slurry) with working pressure is pressed and filtered in the filter room.
(1) Frame part: The frame constitutes the foundation of the filter press, which is used to support the filter mechanism and connect other components. It is mainly composed of thrust plate, pressing plate, pressing part and main beam.
(2) The filtration part: It is composed of the filter plate arranged in a certain order on the main beam and the filter medium (filter cloth) sandwiched between the filter plate, forming a filter unit (filter chamber).
(3) The pressing part: it is the power device of the filter press, the main parts are small tooth faint, big gear, lead screw and so on. The machine structure design is reasonable, stable and reliable performance, simple operation, convenient maintenance, wide range of application, is the ideal equipment for suspension separation.
